Box

Draw a 3D cube.

This function draws a 3D cube using an advanced form of the polygon mesh.

Mesh entities are always drawn with CONTINUOUS line type.

Procedure

1. You are prompted to:

2. Type in the relevant dimensions and define the centre position of the shape. In the example below we have changed to an isometric view before creating the box.

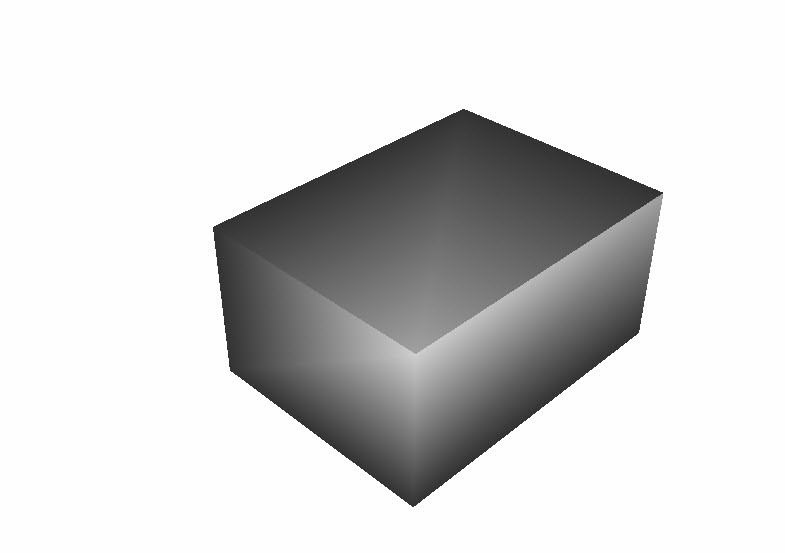

3. The box is drawn. If you apply smooth shading in the Render view, the box displays as below.
