Icon |
Command |
Shortcut Key |
Toolbar |
|
|
DOMEDITOR |
|
|

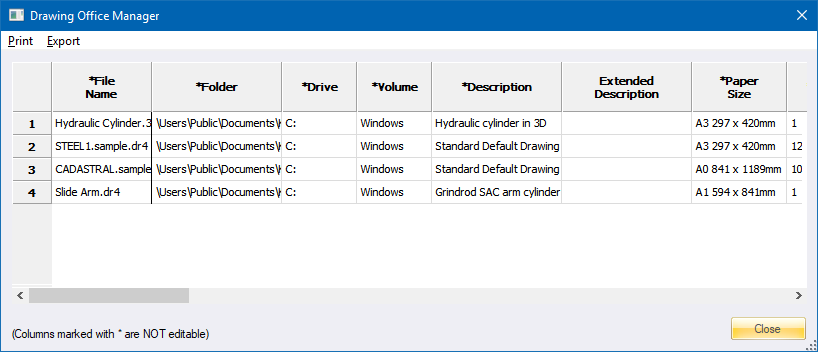

The Drawing Office Manager (DOM) Editor displays the fields in the drawing office manager database. The fields (columns) marked with an asterisk (*) cannot be edited.
|
Field
|
Description |
|
File Name |
The drawing file name. |
|
Folder |
The path to the drawing file. |
|
Drive |
The drive that the drawing file is on. |
|
Volume |
The volume label the drawing file is on. |
|
Description |
The description entered when saving the drawing. |
|
Extended Description |
User field. |
|
Paper Size |
The paper size of the drawing |
|
Scale |
The scale of the drawing |
|
Units |
The drawing units |
|
Coord System |
The coordinate system of the drain. |
|
X Origin |
The X coordinate of the drawing origin. |
|
Y Origin |
The Y coordinate of the drawing origin. |
|
Department |
The department entered when saving the drawing. |
|
CAD Version |
The CAD version that created the drawing. |
|
Created |
The date the drawing was created. |
|
Updated |
The date of the most recent update to the drawing. |
|
Printed |
The most recent date the drawing was printed. |
|
Due |
User field. |
|
Customer |
User field. |
|
Job Number |
User field. |
|
Category |
User field. |
|
Drawing Number |
User field. |
|
Alternate Number |
User field. |
|
Status |
User field. |
|
Draughtsman |
The name of the draughts person. |
|
Cost/Hr |
User field. |
|
Total Time |
The total time in minutes that the drawing was worked on. |
|
Jan |
The total time the drawing was worked on in this month. |
|
Feb |
The total time the drawing was worked on in this month. |
|
Mar |
The total time the drawing was worked on in this month. |
|
Apr |
The total time the drawing was worked on in this month. |
|
May |
The total time the drawing was worked on in this month. |
|
Jun |
The total time the drawing was worked on in this month. |
|
Jul |
The total time the drawing was worked on in this month. |
|
Aug |
The total time the drawing was worked on in this month. |
|
Sep |
The total time the drawing was worked on in this month. |
|
Oct |
The total time the drawing was worked on in this month. |
|
Nov |
The total time the drawing was worked on in this month. |
|
Dec |
The total time the drawing was worked on in this month. |
You can export the DOM database in a .csv format using the Export menu option.
